Description

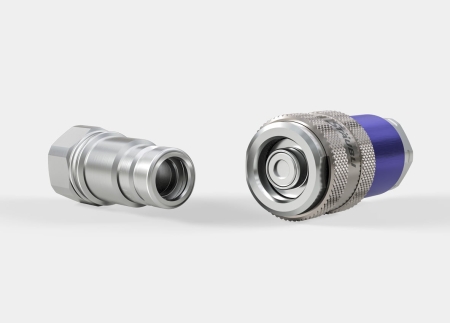

Our high-resistance SBA couplings allow a steady, direct flow of fluid without any turbulence or breaks in the stream. Reliable locking is ensured by a robust locking mechanism with a high number of large cross-section balls. All sealing faces and seals are protected from external impact.
Applications:
Hydraulic oil circuits –
- connection of hydraulic components on static and dynamic test benches;
- connections of pumps, cylinders and directional control valves
Technical specifications:
- Bore diameters (mm): 08 – 11 – 12 – 15
- Max. working pressure (bar): 450
- Operating temperatures (°C): -15 to +150
Fluids:
- Oils
Construction:
- Main parts made from chrome steel and carbon steel
- Treated for corrosion protection
Other features:
- Colored rings for instant visual circuit identification
- Connection under residual pressure (optional)
- Panel-mounted version available.
