STAUBLI SAF 45 – Pit Refuel Systems
Staubli Motorsport – SAF 45 Refueling System
Safe, Fast Fuel Transfer
It is approved by FIA, and in some Motorsport codes has become a requirement. It’s about improving safety during refuel in Pit Stops.

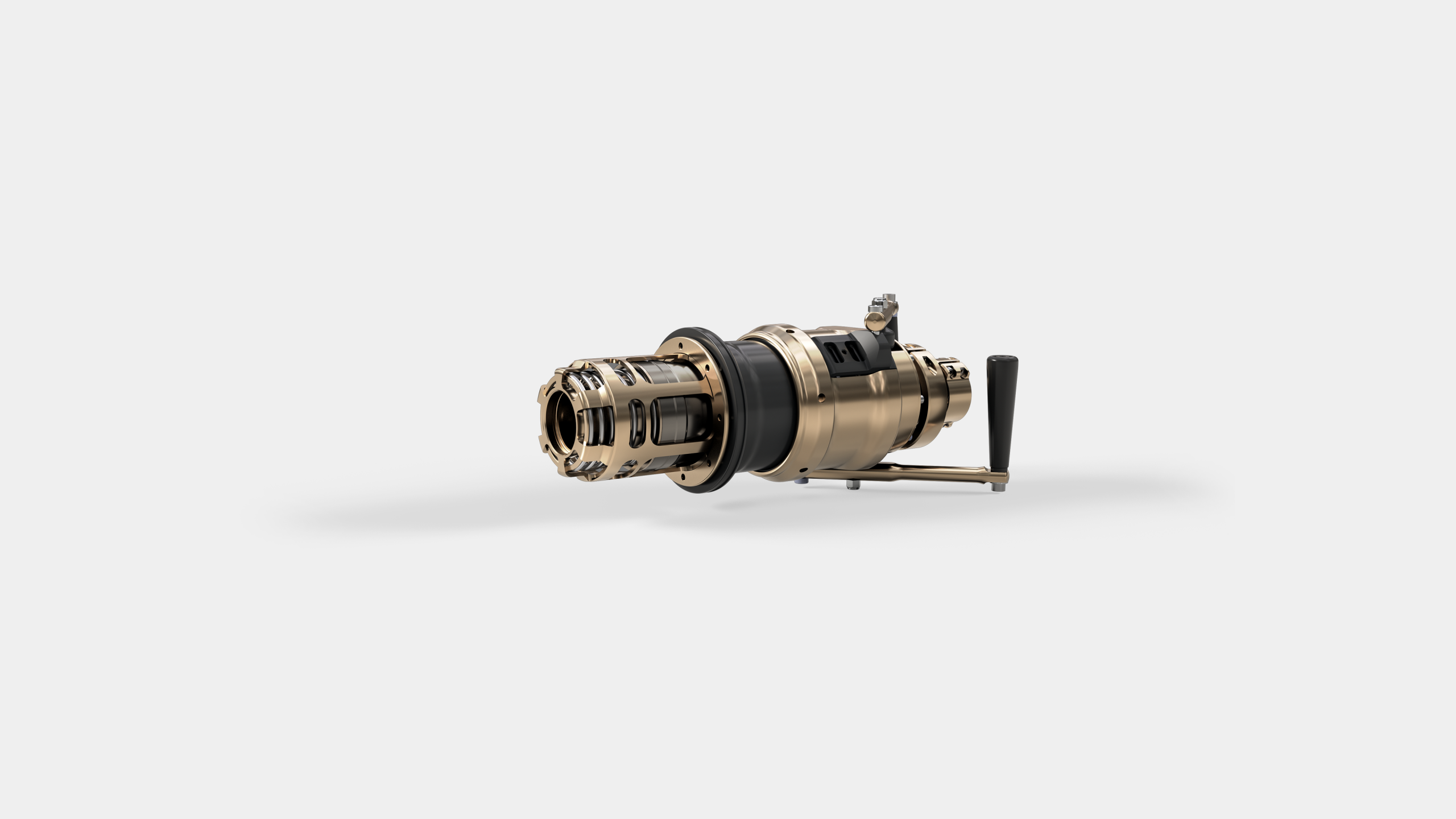

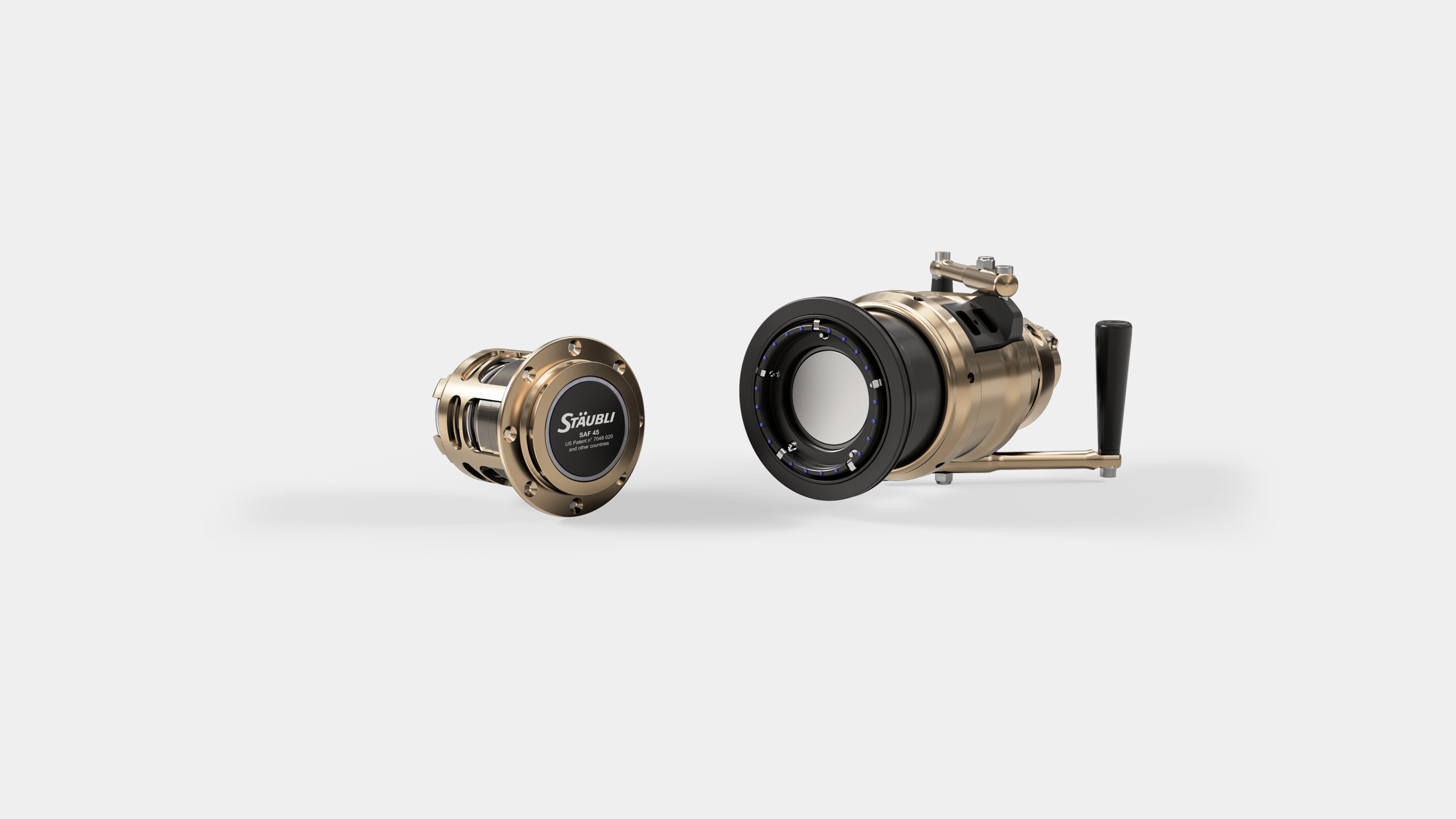

These systems have made pit refueling extremely safe. With an extra high flow rate, the SAF refueling system can fill a tank very quickly and minimize pit stops. Safety is guaranteed by a connection design that prevents any fuel release until the socket is fully connected to the plug. As an added safety feature, the SAF is also equipped with an FIA-approved dead man’s switch. Designed to be as light as possible, the SAF system is also very easy to handle.

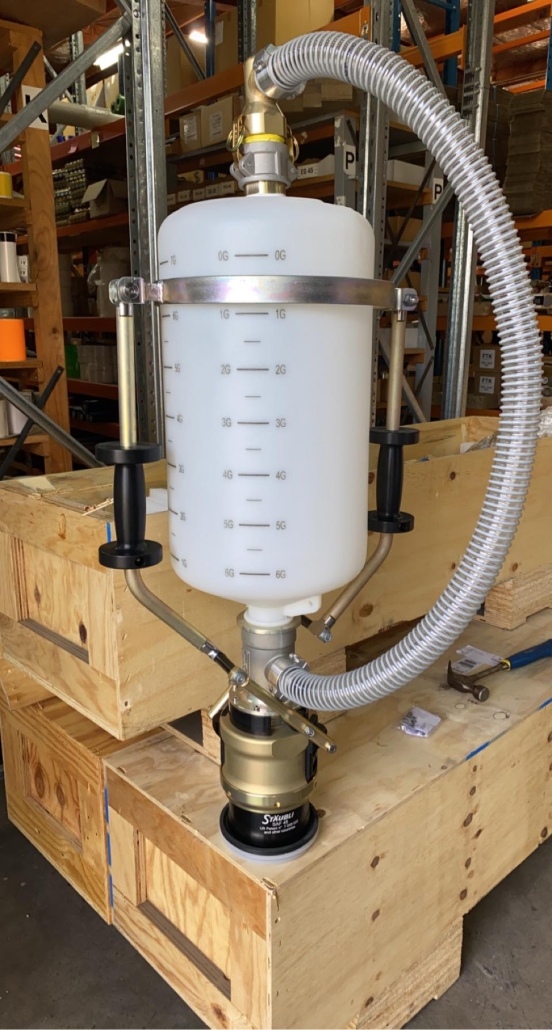

The Staubli SAF 45 is a combination of the high-tech transfer nozzle, with a small volume bottle system. It means the device can be bought to the vehicle quickly and easily – and with such a fast transfer rate, with guaranteed non spill, the device brings the ultimate in Pit Refueling Safety on the planet.
If you want to see it in action, follow Jake Fastnedge (Sales Manager at Techspan) as I compete in various Drifting Events around New Zealand… where our team will be using the Staubli SAF 45 refuel system. Now fitted on both racecars. The team will show it off every time I refuel, said Jake Fastnedge
The latest in motorsport refuelling :
With an extra high flow rate, the SAF refueling system can fill a tank very quickly and minimize pit stops. Safety is guaranteed by a connection design that prevents any fuel release until the socket is fully connected to the plug. As an added safety feature, the SAF is also equipped with an FIA-approved dead man’s switch. Designed to be as light as possible, the SAF system is also very easy to handle.
Staubli SAF 45 Technical specifications
Nominal diameter DN (mm): 45
Maximum allowable pressure*: gravity
*depending on the model and operating conditions
Fluids
Fuel
Construction
Aluminum (main material)
2 types of seals
Other features
Versions with straight or angled bottle
Download the Brochure
STÄUBLI SELECTED AS THE SOLE SUPPLIER FOR FUEL QUICK-FILL SYSTEM
Stäubli has for many years been instrumental in delivering innovative solutions to the motorsport industry.
As a global provider of connection solutions for fluid and electrical applications, reliability has always been at the heart of the company’s DNA. Its products are tailored to deliver high-performance and reinforce safety for manufacturers.
The FIM Endurance Championship, World Cup and the promoter, Discovery Sports Events, have unanimously agreed to select Stäubli as the sole homologated supplier for fuel quick-fill systems for the FIM Endurance World Championship and World Cup.
As a result, from 2022 to 2026, the teams will utilise the SAF system. Recognised for its performance and reliability, the introduction of SAF 45 will ensure technical fairness whilst providing an overall reduction in cost.
Safe pit stop refueling systems for racecars and motorcycles
With an extra high flow rate, the SAF refueling system can fill a tank very quickly and minimize pit stops. Safety is guaranteed by a connection design that prevents any fuel release until the socket is fully connected to the plug. As an added safety feature, the SAF is also equipped with an FIA-approved dead man’s switch. Designed to be as light as possible, the SAF system is also very easy to handle.
