MOTORSPORTS HYDRAULIC
Hydraulic quick-release couplings for Motorsport applications

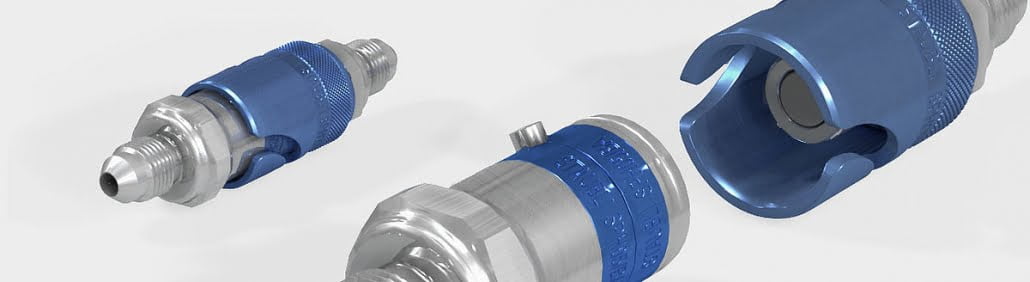

SPH BA FOR MOTORSPORT
Clean-break safety quick coupling for motorsports SPH BA
These high pressure quick couplings are designed for the most demanding on-board applications, combining resistance with bayonet locking, compactness and lightness. Completely non-spill SPH BA connectors give you a guaranteed seal on connection and disconnection. Air does not penetrate, and there is no need to bleed the circuits.
Technical specifications
Nominal diameter DN (mm): from 03 to 16
Maximum allowable pressure*: 350 bar (5076 PSI)
Fluids
Brake fluids, oils, mineral greases, nitrogen, gasoline, etc.
Construction
Available in 3 versions: high-resistance aluminum, titanium and stainless steel
Available with different types of seals
Other features
4 colors for easy identification: red or yellow in the aluminum version, and green or blue in titanium
*depending on the model and operating conditions
APPLICATIONS
Automotive and motorcycle braking circuit connections
Connection of high pressure hydraulic circuits
Cooling of engine oil and water
Fuel line connections
Connection of power steering circuits
Download the SPH BA Staubli Brochure here

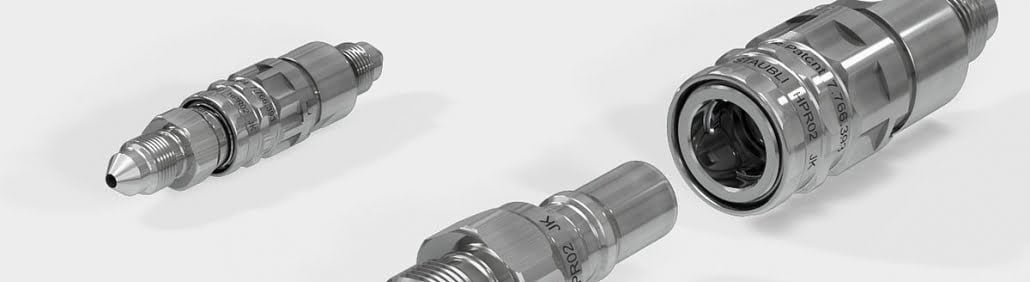

HPR FOR MOTORSPORT
High pressure clean-break quick coupling for motorsports HPR
The non-spill HPR quick couplings are ideal for high flow speeds (30 m/s) and high pressure, offering strong resistance in a compact size. Features include high strength locking, designed to resist extreme conditions of vibration and pressure fluctuation. The flat face technology ensures a leak free connection and disconnection. These quick connectors are ideal for onboard hydraulic circuits.
Technical specifications
Nominal diameter DN (mm): 02 and 04
Maximum allowable pressure*: 350 bar (5076 PSI)
Fluid speed: 30 m/s
Fluids
All hydraulic and brake fluids (HPR 02)
Hydraulic fluids (HPR 04)
Construction
Stainless steel and titanium
2 types of seals: perfluoroelastomer and fluorocarbon
*depending on the model and operating conditions
APPLICATIONS
Onboard connections, particularly in Formula 1 motorsports

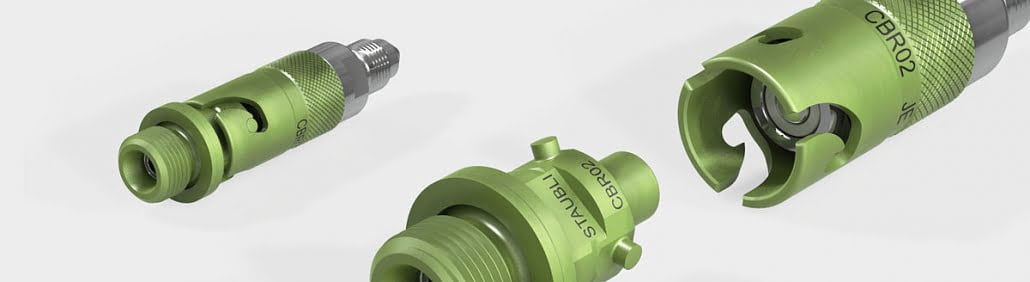

CBR FOR MOTORSPORT
High pressure clean-break quick coupling for motorsports CBR
This on-board hydraulic connection is exceptionally light and compact, yet reliably resistant to high pressure. The bayonet locking system makes it secure and easy to connect, while a tight dust cap protects the plug when disconnected. A non-spill design prevents any spillage while connecting or disconnecting and eliminates the need to purge the circuits.
Technical specifications
Nominal diameter DN (mm): 02
Maximum allowable pressure*: 300 bar (4351 PSI)
Fluids
Hydraulic oils and brake fluids
Construction
Titanium
Stainless steel
3 types of seals (fluorocarbon, ethylene-propylene or perfluoroelastomer)
Other features
Colored ring (blue or green) for instant circuit identification
Mechanical safety key (option)
*depending on the model and operating conditions
APPLICATIONS
Hydraulic line connection
Brake line connection
Bleeding hydraulic lines
Bleeding break lines, calipers, clutches
Nitrogen recharging of dampers
